5309 MEADOW CHASE · VIS-03 · 27 SEPTEMBER 2026

Fireplace coordination

DESIGN / VERIFICATION OPEN — NOT CONSTRUCTION RELEASED

The VIS-02 room stays. The fireplace face, full-wall metal mantel, hearth and finish references are revised below.

Download VIS-03 coordination PDF Controlling record Revision / source report

VIS-03 — geometry/material coordination revision based on latest fireplace/hearth dimensions and confirmed Durham Hickory II flooring; supersedes VIS-02 for design geometry while retaining VIS-02 room/context reference.

VIS-03 room views

Preserve the room width, windows and spacing, ceiling geometry, existing firebox position and general proportions. At the illustrated elevation, the full-wall mantel crosses window glazing: resolve elevation, clearance and support in the field. These generated views communicate appearance; dimensioned coordination drawings and verified field measurements govern. Hearth height is TBD; any 2-in. or 3-in. visual reference is FIELD VERIFY / NOT RELEASED.

**01 · Front room view** VIS-02 camera/context reference; fireplace assembly revised. Photorealistic concept, not a measured model.

**02 · Angled room view** Shows revised forward face and recessed firebox. All unconfirmed vertical proportions remain illustrative. Upper stone/ceiling junction is cropped in this depth view; use the front view and retained VIS-02 room reference for ceiling context.

ONE CONTROLLING RECORD

Dimensions and status

CONFIRMED denotes the recorded existing-condition measurements and identified products, not construction approval. Proposed geometry is OWNER/GC DIRECTION. Unresolved values remain FIELD VERIFY.

Status	Reference	Value	Control note
CONFIRMED	Existing stone/fireplace face	64 W × 94 H in	Existing reference only; forward top height FIELD VERIFY.
CONFIRMED	Existing firebox opening	46⅛ W × 26¾ H in	Existing position retained; exact datum/transition FIELD VERIFY.
OWNER/GC DIRECTION	Finished fireplace face	12–13 in from original wall	Inclusive of framing/substrate/stone.
OWNER/GC DIRECTION	Mantel projection	≈8 in beyond finished stone	Leading edge ≈20–21 in from original wall, derived; field verify.
OWNER/GC DIRECTION	Mantel span / material	Full fireplace-wall width / dark metal	Exact wall span, thickness, elevation, finish and backing remain open.
OWNER/GC DIRECTION	Hearth base	79 W × 18 D in	Depth measured from ORIGINAL WALL.
OWNER/GC DIRECTION	Hearth stone cap	≈81 W × 19 D in	≈1 in side/front overhang; depth from ORIGINAL WALL.
FIELD VERIFY	Hearth height	TBD	2 or 3 in shown only as coordination reference; NOT RELEASED.
FIELD VERIFY	Trim dimensions	TBD	IMG_0737 confirms existing appearance, not dimensions.

Depth coordination: cap projects ≈6–7 in beyond stone; base ≈5–6 in beyond stone; mantel ≈1–2 in beyond cap. These are derived relationships, not additional approved dimensions.

Earlier 8¾-in floor-to-stone/opening note has an unresolved datum; do not use it to relocate the opening. Retain recorded 30½-in windowsill and 22½-in stone/window relationship as field references, subject to final remeasurement.

Coordination drawings

Open each drawing at full size. Schematics are not fabrication drawings; do not scale unknown heights, wall spans or assembly layers.

**03 · Front elevation** Existing references distinguished from proposed geometry.

04 · Side / profile section Original wall → 12–13 in finished face → ≈8 in additional mantel.

**05 · Hearth detail** 79 × 18 in base; ≈81 × 19 in cap. Height TBD.

**06 · Firebox-return detail** Fitted/wrapped returns to the retained factory face; actual recession TBD.

**07 · Full-width mantel** Exact wall span and endpoint conditions FIELD VERIFY.

Actual materials and trim evidence

**08 · Material strip** Actual project stone, actual Durham Hickory II plank and existing trim photograph; metal finish remains a direction swatch.

Wall stone

River Canyon Natural Marble Ledger Panel, Floor & Decor SKU 101022556. Preserve the larger stone character in the preferred visual with the actual ivory/cream/beige/taupe marble palette. The prior small stone inset is rejected as a color reference.

Open actual stone photograph

Floor

American Spirit Durham Hickory II, hand-scraped engineered hardwood, SKU 100598689. IMG_0927 is the primary color/grain reference; IMG_0928 establishes product identity.

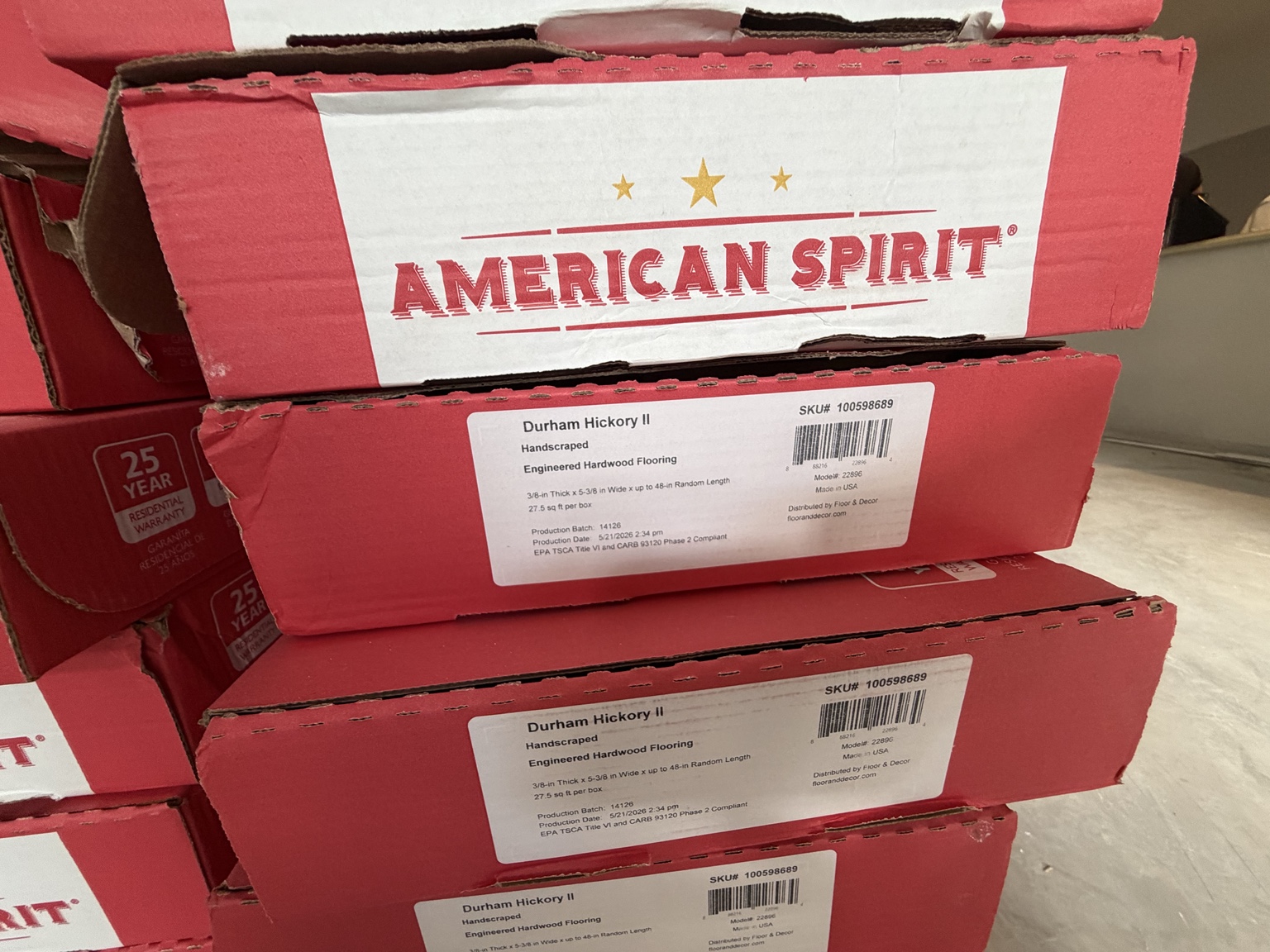

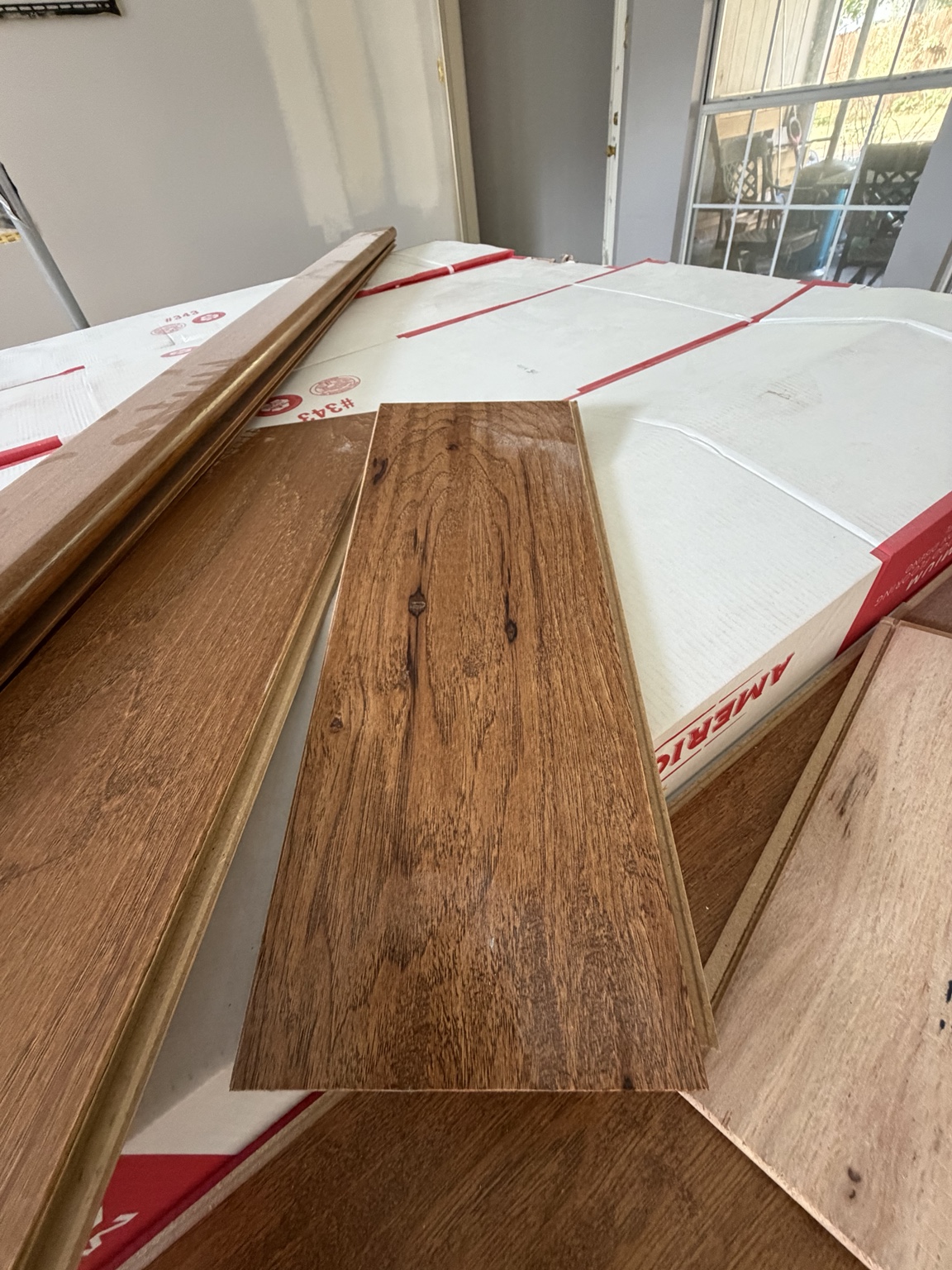

Actual plank · Product label

Mantel

Custom dark floating metal; full fireplace-wall width; approximately 8 in beyond the finished stone. Final finish, thickness, elevation, attachment/backing and appliance clearances remain subject to approval and verification.

Existing trim

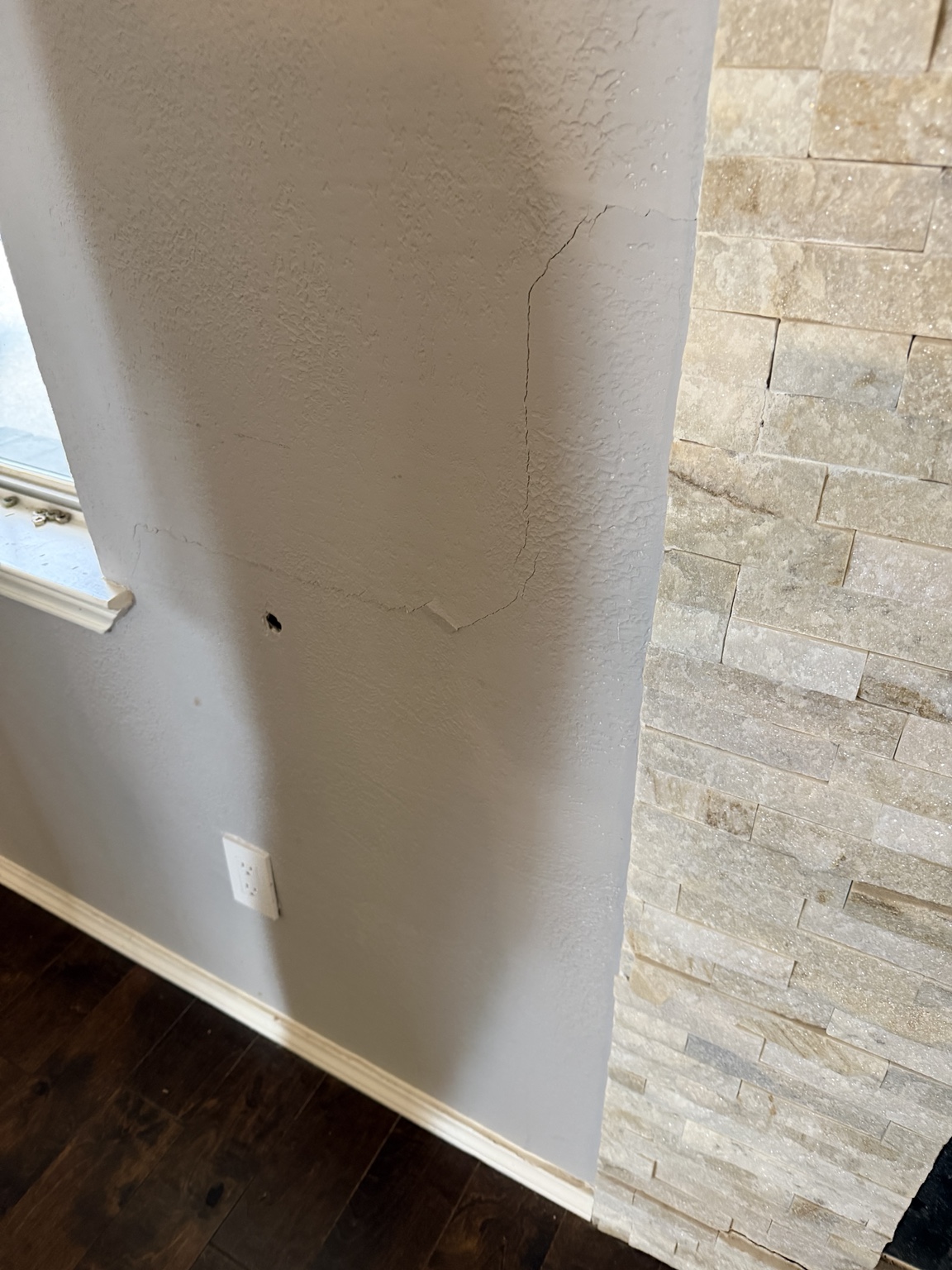

IMG_0737 provides the best close view found, corroborated by IMG_0734 and IMG_0739. Depict existing painted-white trim conservatively. Exact profile, height and thickness FIELD VERIFY; obtain a measured physical sample before matching.

Open existing-baseboard photograph

02 · Room and ceiling

Room and ceiling

The stone face sits between windows beneath a ceiling that rises outward into the room. The existing firebox stays in its current position; its precise relation to the original wall datum remains to be measured.

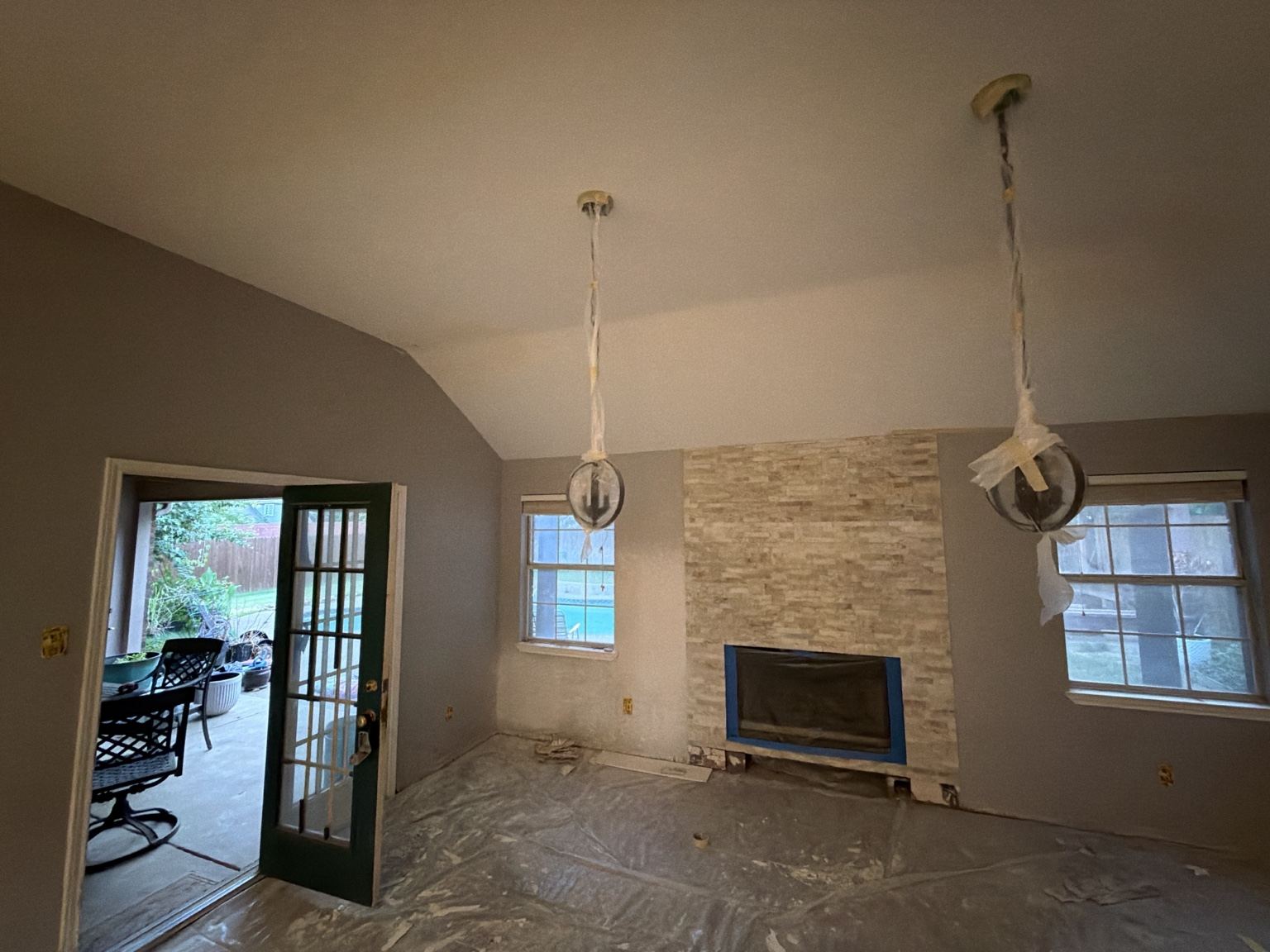

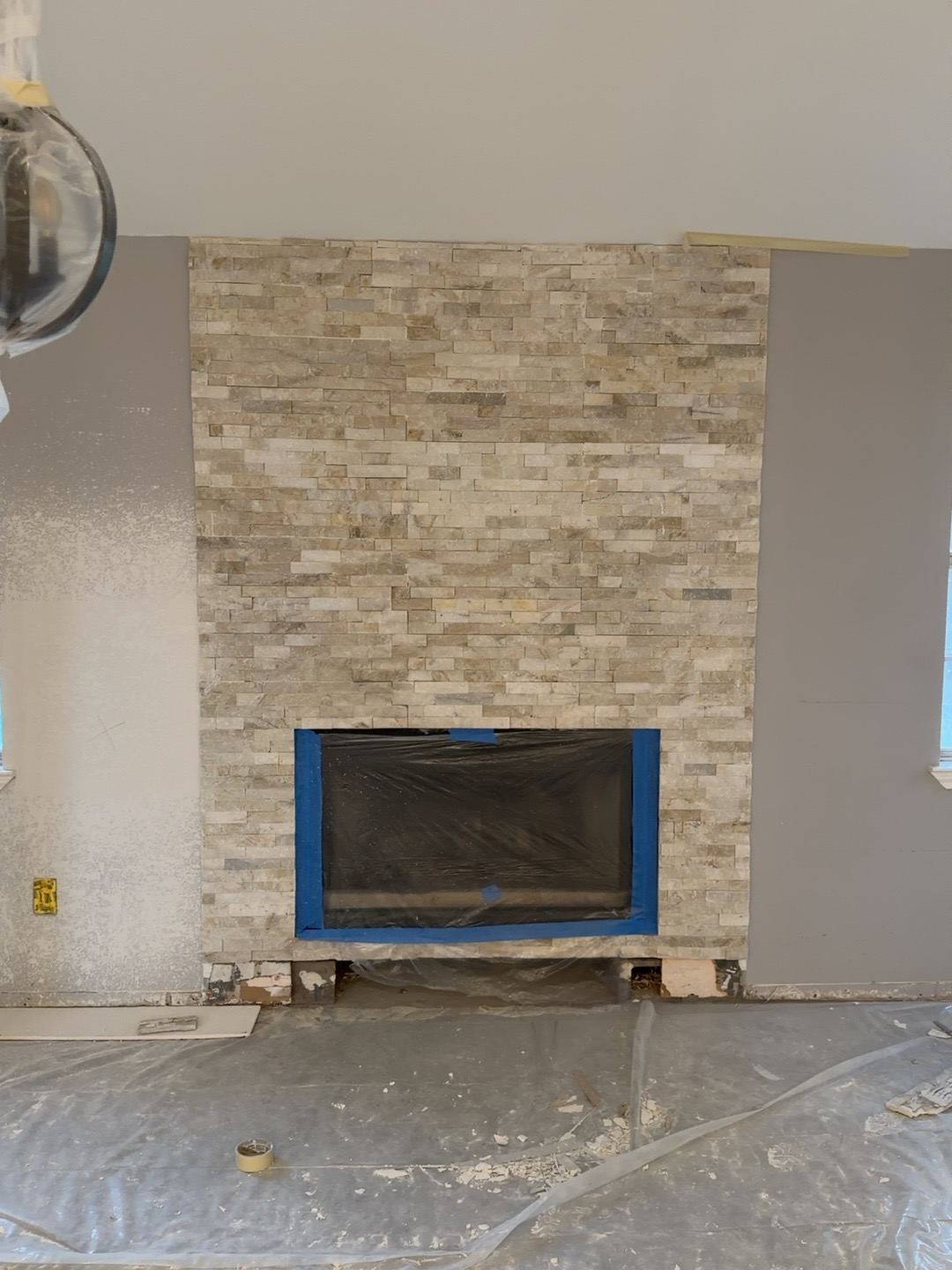

Front view documenting the existing stone facing and firebox opening — Existing stone face

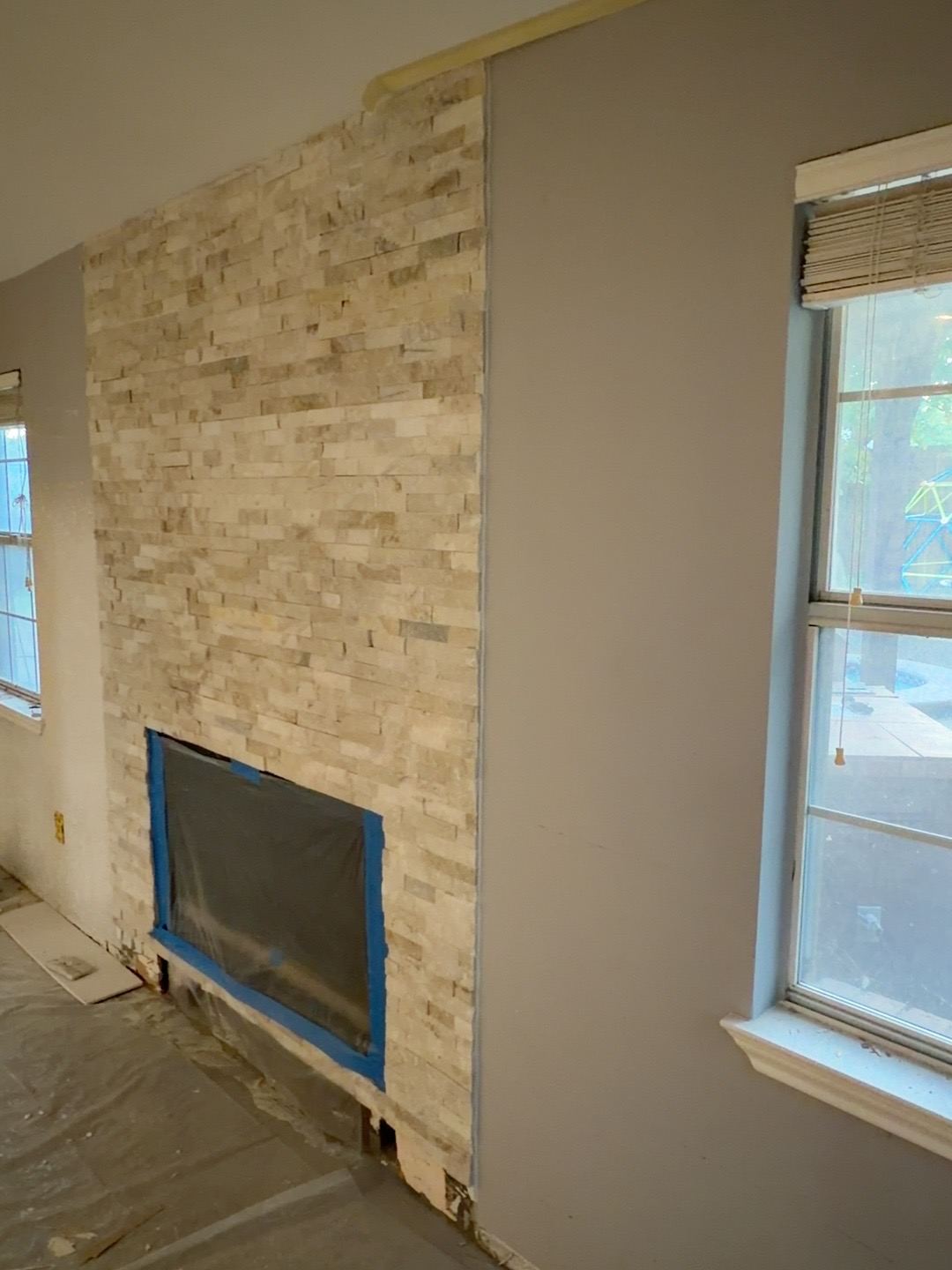

Angled view documenting the existing shallow stone face and firebox surround — Stone face and side return

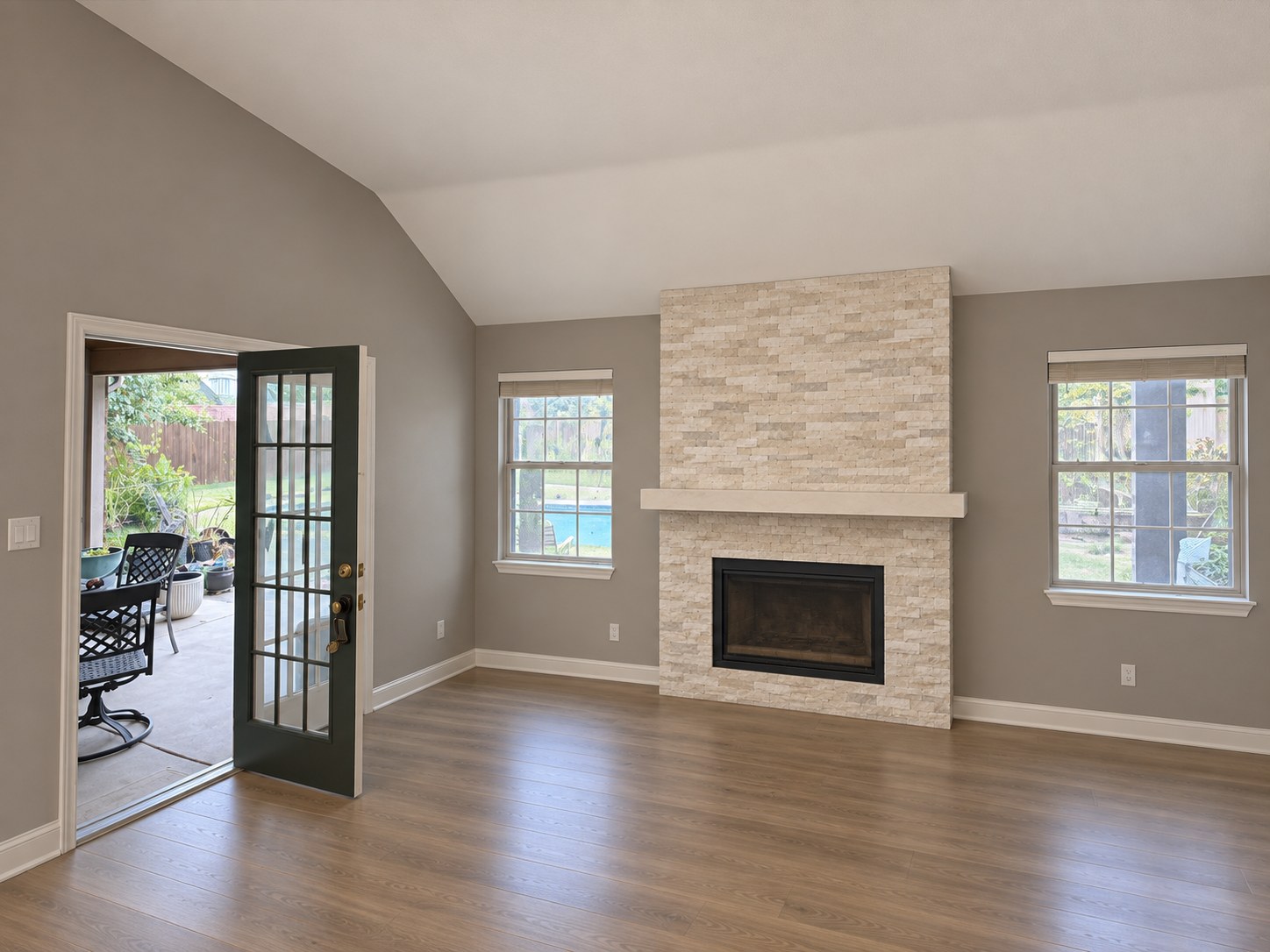

Wide view of the fireplace centered between windows and the surrounding room — Room context and fireplace wall

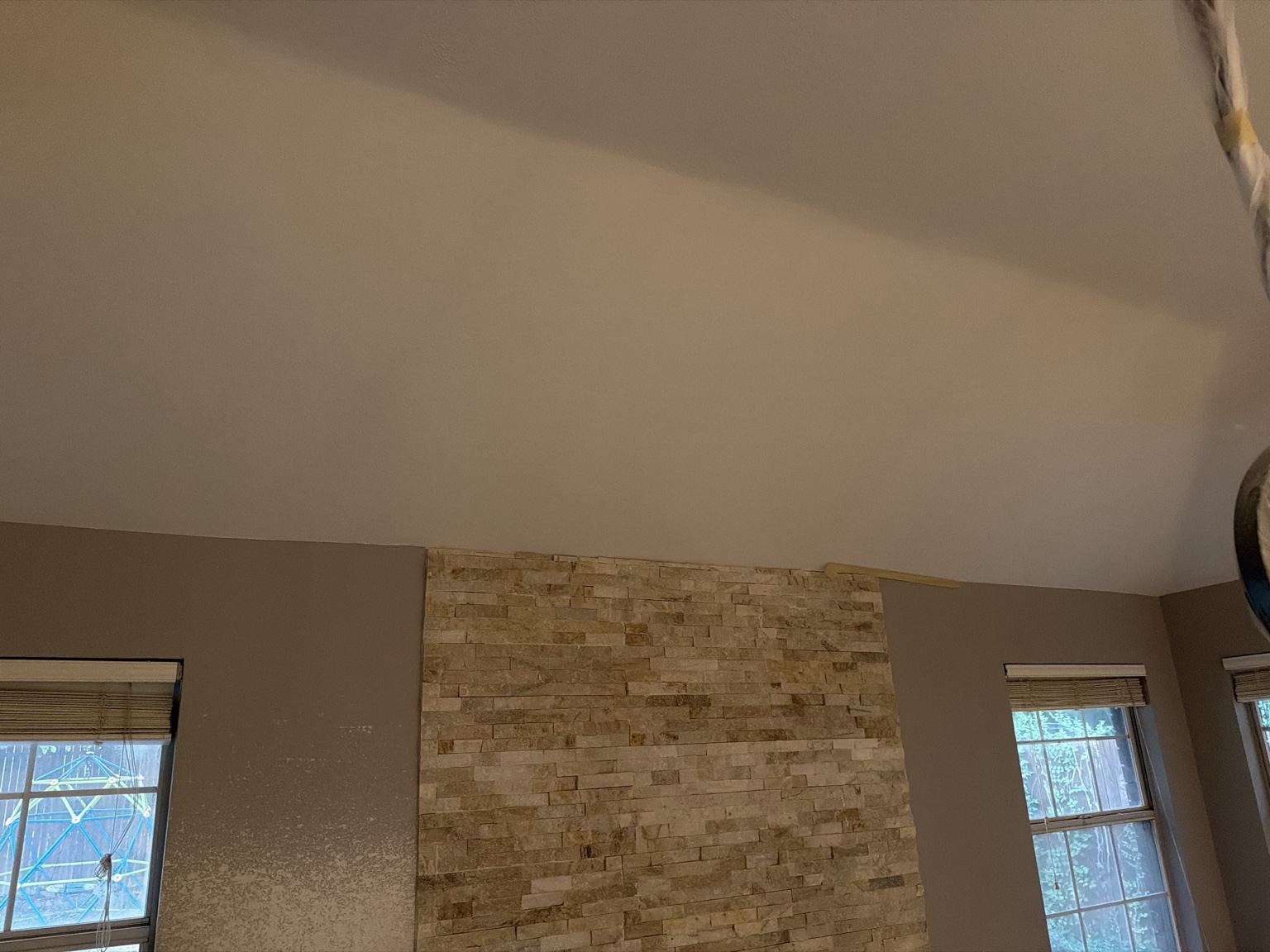

Ceiling above the fireplace showing its rise outward into the room — Ceiling rises outward into the room

HEATILATOR / MANUAL VERIFICATION GATE

Before construction release

Heatilator HD42 family is a working identification only. Verify data plate and exact suffix, documents 12955 (4-14-88), 12063 (6-6-88), and installed gas equipment listing. No conceptual dimension overrides applicable manufacturer clearances, service/gas access, structural backing or field measurements.

Exact fireplace-wall width and mantel endpoint conditions
Final forward face width/height, ceiling pitch and top scribe; 64 × 94 is existing reference
Exact finished face depth within 12–13 in and component build-up
Mantel thickness, elevation, window-glazing/trim conflict, finish, fabricator, structural attachment/backing and loads
Hearth height TBD; 2 or 3 in reference only, not released; cap thickness, material, joints and support TBD
Firebox datum, actual recession, return depth, opening transition and permitted overlap
Heatilator data plate, exact model/suffix, installed gas equipment identification and applicable manuals/clearances
Gas key/shutoff access, service removal paths, chimney/enclosure air spaces and circulation clearance
Existing trim profile, height, thickness, paint and physical sample match

The appliance and chimney remain fixed. No fabricated firebox extension is approved. Confirm the exact gas equipment and listing; do not assume a particular insert from a render. Preserve glass/door removal, louvers, convection openings, lower service access and permanent gas-shutoff accessibility. Any valve or piping change requires separate qualified-trade review.

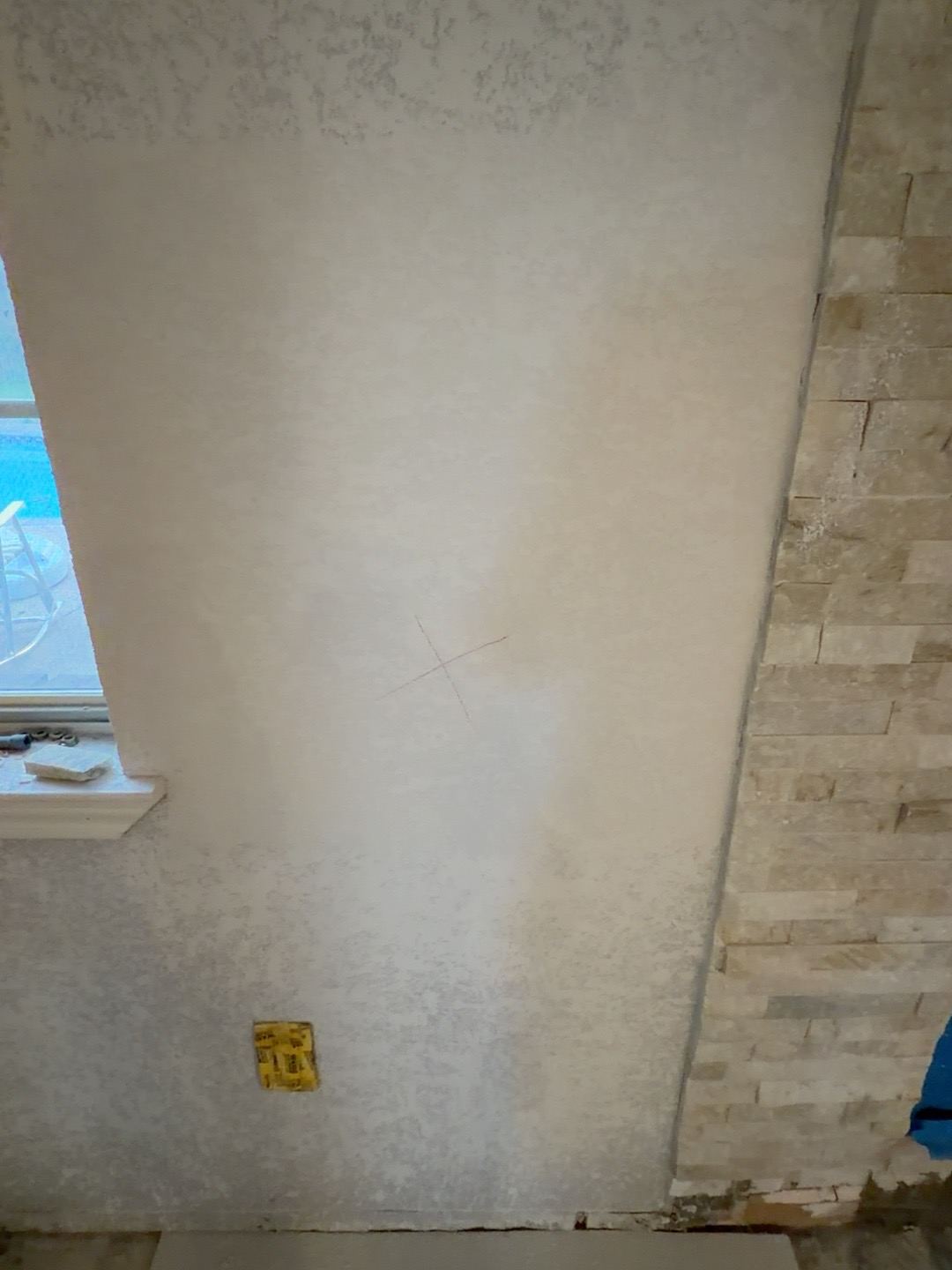

Gas-shutoff field photograph

Revision control

VIS-02 and earlier geometry — SUPERSEDED / ROOM CONTEXT ONLY

VIS-02 is retained for camera positions and room context only. Its no-hearth design, 5–6-in face projection, 4-in/8-in profile studies, 72-in mantel and 4-in side overhang, and unconfirmed-flooring statements are superseded. Its small stone inset is not an approved sample. Do not build from these historical sheets.

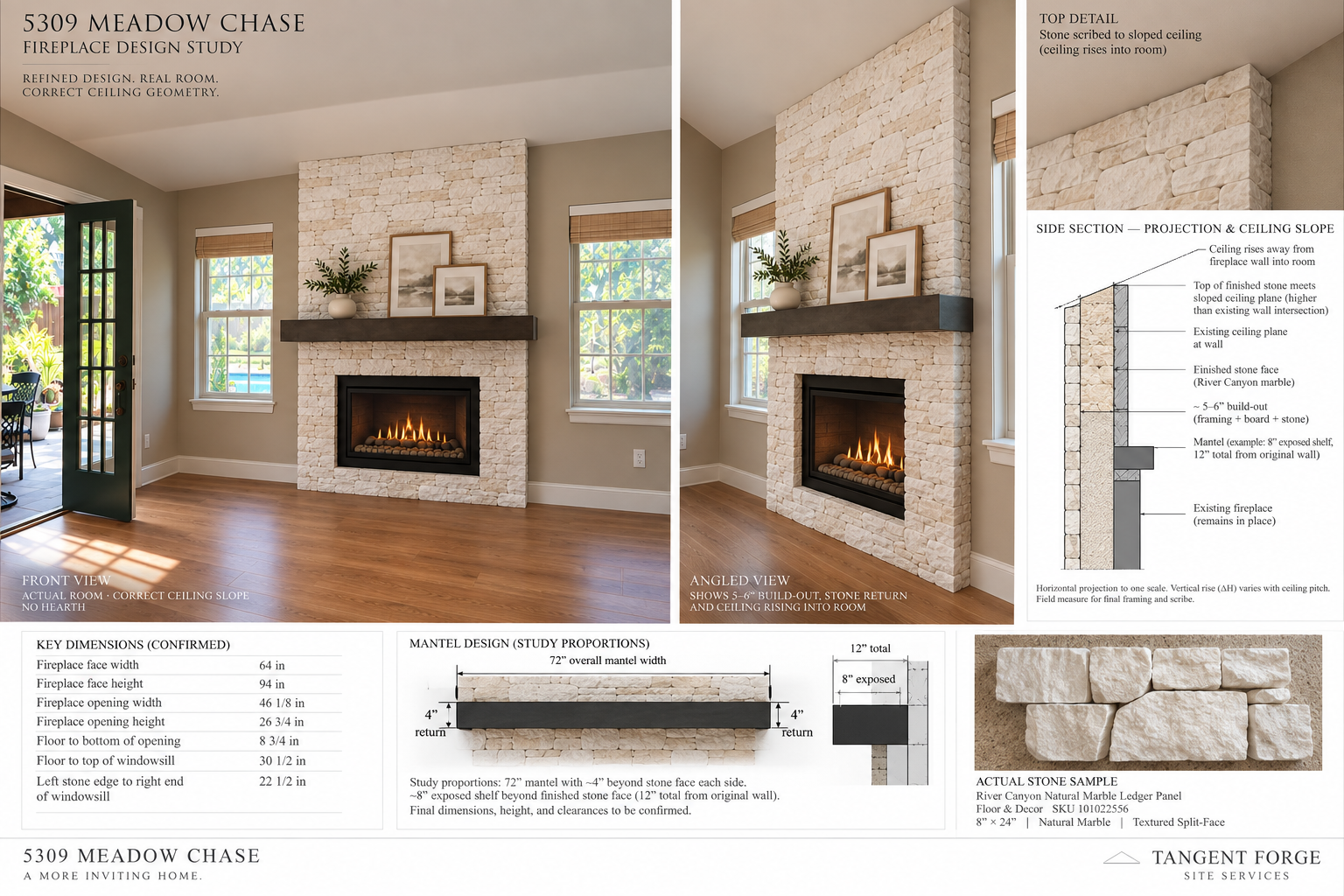

Historical VIS-02 board — geometry superseded
